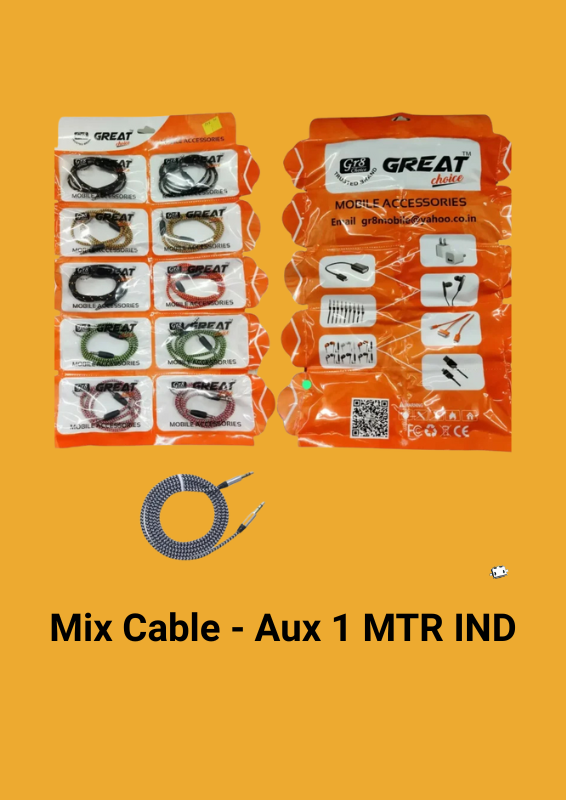

Mix Cable – Aux 1 MTR IND

A 3.5mm stereo aux audio cable transmits audio signals between devices through a simple yet effective design. Here’s how it works:

1. Connector Structure: The 3.5mm connector, also known as a TRS (Tip-Ring-Sleeve) connector, has three segments:

– Tip: Carries the left audio channel signal.

– Ring: Carries the right audio channel signal.

– Sleeve: Serves as the ground or return path for the audio signals.

2. Stereo Transmission: When you connect the cable to devices, each channel’s audio signal is carried separately:

– Left Channel: The signal from the Tip travels through the cable to the receiving device.

– Right Channel: The signal from the Ring travels through the cable to the receiving device.

3. Audio Pathway: The audio signals from the source device (e.g., smartphone, computer) are sent through the cable to the destination device (e.g., car stereo, speakers). The destination device then processes these signals and plays the sound through its speakers.

4. Compatibility: This type of cable is compatible with most audio devices that have a 3.5mm jack. It provides a straightforward way to connect devices without needing special adapters or configurations.

Overall, the 3.5mm stereo aux cable offers a convenient and high-quality way to transmit audio signals across a range of devices.
